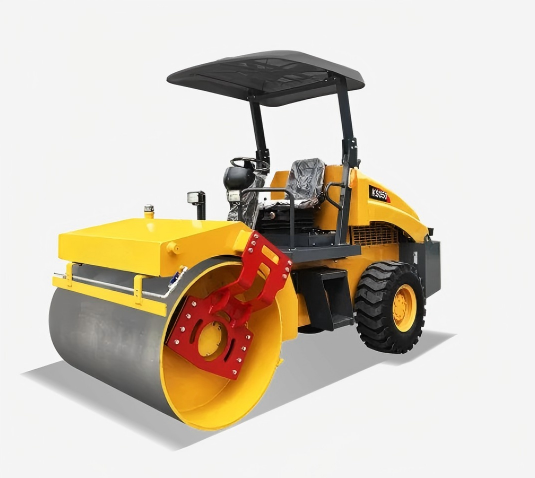

BW050
Flexible operation
The entire machine has a compact structure, with a small turning radius and strong maneuverability. It can easily navigate through narrow construction sites, offering broader operational adaptability and ensuring safety and reliability.
Front and rear LED headlights
Equipped with front and rear LED headlights, they provide high brightness and wide coverage. The user-friendly lighting design ensures clear vision during night operations, and the construction efficiency is not affected by the light conditions.
Power system
The engine features high efficiency, energy saving, and low noise. It has sufficient power reserve and can easily handle complex compaction scenarios.
Single-hand integrated operation
The core actions such as walking, vibration, and steering are integrated into a single handle. A single person can complete the entire process of operation with just one hand, significantly reducing labor intensity. Even beginners can quickly master it.
| Parameter | Unit | BW050 |
| Operation weight | kg | 4300 |
| Static linearity load | N/cm | 140 |
| Amplitude | mm | 0.5 |
| Vibration frequency | Hz | 52 |
| Centrifugal force | kN | 65 |
| Drum width | mm | 1450 |
| Drum diameter | mm | 1000 |
| Speed range | km/h | 0-8.2 |
| Climbing capability | % | 30 |
| Turning radius | mm | 5100 |
| Engine brand | - | Yunnei |
| Emission standard | - | China 4 |
| Engine power | kW | 36.8 |
| Dimensions | mm | 3820×1560×2520 |
